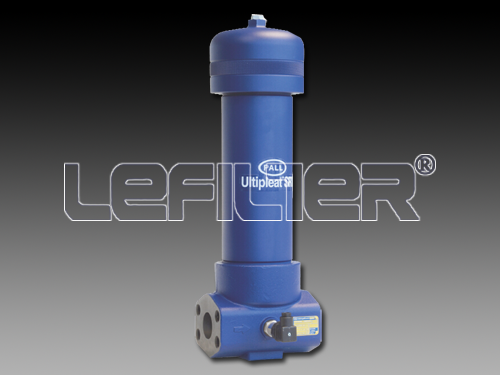

Pall UP319 Series High Pressure Filters

Pall UP319 Series High Pressure Filters Specifications

Maximum Working Pressure:
250 bard (3625 psid) For high cyclic applications, use UH319 series
Typical Burst Pressure:
1050 bard (15,230 psid)

Fluid Compatibility:
Compatible with all petroleum oils, water glycols, water-oil emulsions and most synthetic hydraulic and lubrication fluids
Temperature Range:
Fluorocarbon Seals: -29 °C to 120 °C (-20 °F to 250 °F) 60 °C (140 °F) maximum in HWCF or water glycol fluids

Bypass Valve Setting:4.5 bard (65 psid)
Indicator Pressure Setting:3.5 bard (50 psid)
Materials of Construction:

Tube: Carbon steel
Head and Cover: Ductile Cast Iron

Pall Highpressure Filter Housing inside Filter Element

Filter Element Burst Pressure:10 bard (150 psid)
Ultipleat SRT Element Construction:
Inorganic fibers impregnated and bonded with epoxy resins. Polymer endcaps. Anti-static media design
The equipment has been assessed in accordance with the guidelines laid down in The European Pressure Directive
97/23/EC and has been classified within Sound Engineering Practice S.E.P. Suitable for use with Group 2 fluids only.
Consult Sales for other fluid gas group suitability.

Length Code  ‘C’ Option Overall         ‘C’ Option Element                    Empty Weight kg (lb)
                                 Length mm (in.)             Removal Clearancemm (in.)
08                                 442 (17.4)                    205 (8.07) 138                                 29.7 (65.5)
13                                577 (22.7)                     340 (13.4)                                        33.4 (73.6)
20                                747 (29.4)                     510 (20.1)                                        38 (83.8)
40                               1255 (49.4)                   1020 (40.2)                                       52 (114.6)

Pall High Pressure filter Housing Ordering Information:

Please select only from the following list of preferred filter housing options.
Available UP319 Series Options

UP319CA20 08ZG9      UP319CD20 08ZG9   UP319CA24 08ZG9
UP319CD24 08ZG9     UP319CC20 08ZG9   UP319CF20 08ZG9
UP319CC24 08ZG9     UP319CF24 08ZG9    UP319CA20 13ZG9
UP319CD20 13ZG9     UP319CA24 13ZG9    UP319CD24 13ZG9
UP319CA32 13ZG9     UP319CD32 13ZG9    UP319CC20 13ZG9
UP319CF20 13ZG9     UP319CC24 13ZG9    UP319CF24 13ZG9
UP319CC32 13ZG9    UP319CF32 13ZG9     UP319CA24 20ZG9
UP319CD24 20ZG9    UP319CA32 20ZG9     UP319CD32 20ZG9
UP319CC24 20ZG9    UP319CF24 20ZG9     UP319CC32 20ZG9
UP319CF32 20ZG9     UP319CA32 40ZG9     UP319CD32 40ZG9
UP319CC32 40ZG9    UP319CF32 40ZG9
