Quality Replacement for Pall HC7500SUT8H

Pall Filter Element introduction:

Pall filter element is a kind of hydraulic oil filter which is widely used in hydraulic system and lubrication system.
It is used for filtering out the metal particles and rubber impurities cause by wearing in the oil to guarantee the
normal operation of the system.

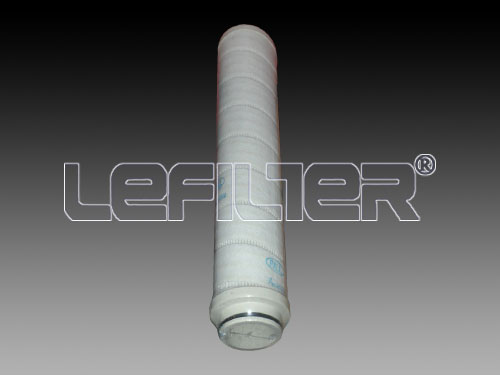

Pall Filter Element Pricture:

Pall Filter Element features:

1. Material: HV fiberglass, filter paper, stainless steel wire mesh
2. Filter accuracy: 1-1000um
3. Pressure: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
4. Application field: hydraulic system, lubrication system
5. O-Ring: NBR, VITON
6. Life span: 5-6 months
7. Dimension:128*11/2-16UNF


Pall Filter Element application areas:

1.Thermal power and the nuclear: turbo-generator, boiler lubrication system, speed control system, bypass
   control system of the purification of the oil, water pump, fan and dust removal system purification.
2.Mechanical processing equipment: papermaking machinery, mining machinery, the injection molding mac-
   hine and large precision machinery lubrication system and compressed air purification.
3.Railway internal combustion engines and generators: lubricating oil and oil filter.
4.Automobile engine and engineering machinery: internal combustion engine with air filter, oil filter, fuel filter,
   engineering machinery, the ships, the vehicles to use all kinds of hydraulic oil filter, diesel oil filter, water filter.
5.All kinds of lifting, handling homework: lifting, loading and other construction machinery to fire, maintenance,
   handling special vehicle, ship's cargo crane, anchor machine, etc.

Quality Assurance:

ISO 2941------Collapse & Burst Resistant

ISO 2942------Fabrication & Integrity Test

ISO 2943------Material Compatibility with Fluids

ISO 3724------Flow Fatigue Characteristics

ISO 3968------Pressure Drop vs. Flow Rate

ISO 16889------Multi-pass Performance Testing

Pall Filter Element Model description:

        HC                 8300               FKN               16                 H

        |                      |                     |                   |                   |
        |                      |                     |                   |                   |
    model         serial number    precision          height    sealing material
                                                 (um)             (inch)      (NBR, VITON)
------------------------------------------------------------------------------------------------------------------------------------------------------------

    Model               β                      precision

        Z               β2.5≥1000                    1

        P               β5≥1000                       3

        N               β7≥1000                       6

        S               β12≥1000                    10

        T               β22≥1000                     25
